eControl Series x-Squared

TECHNICAL INFORMATION


The eControl Series X System has had an upgrade, with the release of the series x-squared version. It boasts full WIFI integration, current temperature displays, external control panels and faster heat up times.


As very flexible system, it can be installed into one of our fully refurbished aga cookers, or as a conversion for your existing Aga Cooker.

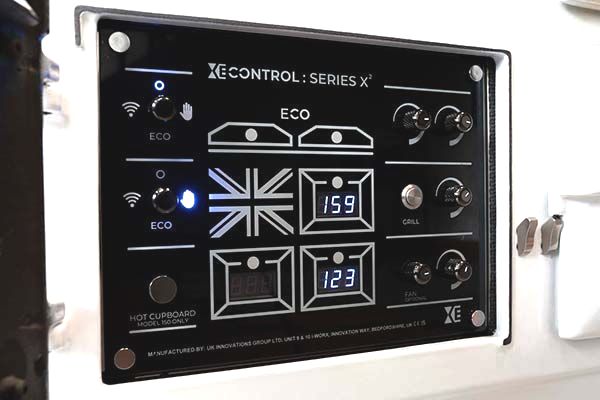

eControl - The x-Squared Control Panel

The eControl Series X-Squared utilises electric elements above and below the cast iron ovens and inside each hotplate, to allow even distribution of heat and full controllability.


Some major upgraded features of this system include:


  • Complete WIFI control as standard.

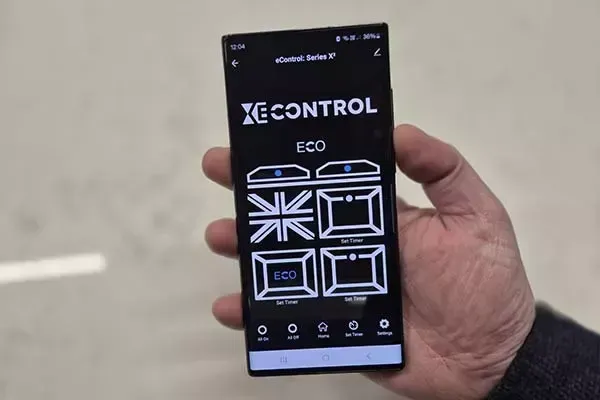

  • See and adjust temperatures remotely via the mobile app.
  • Faster heat up times with the dual-element cassettes (top oven to baking in 44mins).
  • Power-Share technology means the cooker won't pull more than 3kw at one time.
  • Automatic hotplate temperature reduction for reduced risk of repairs.

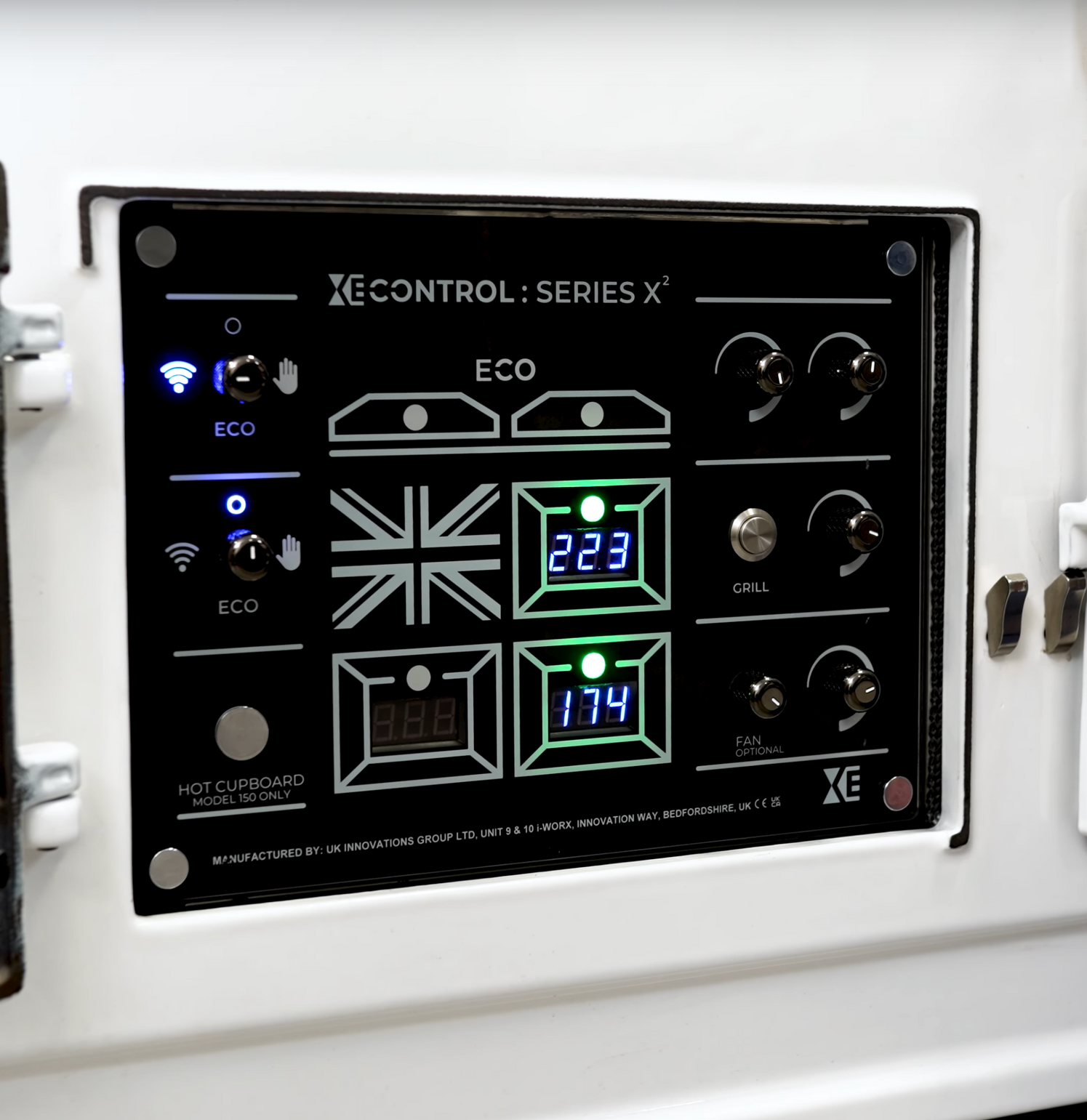

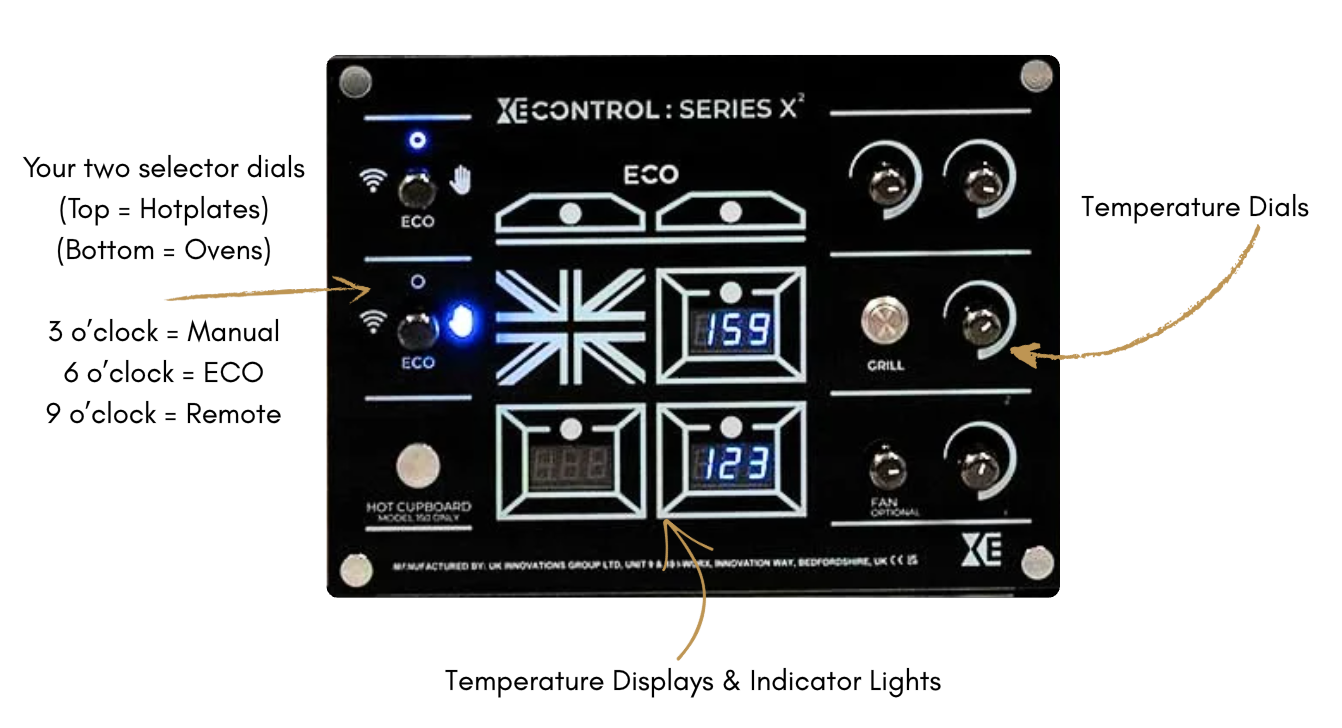

The two dials on the left-hand side can switch the ovens and hotplates into Manual, ECO or WIFI modes. The dials on the right control the temperatures of each zone.

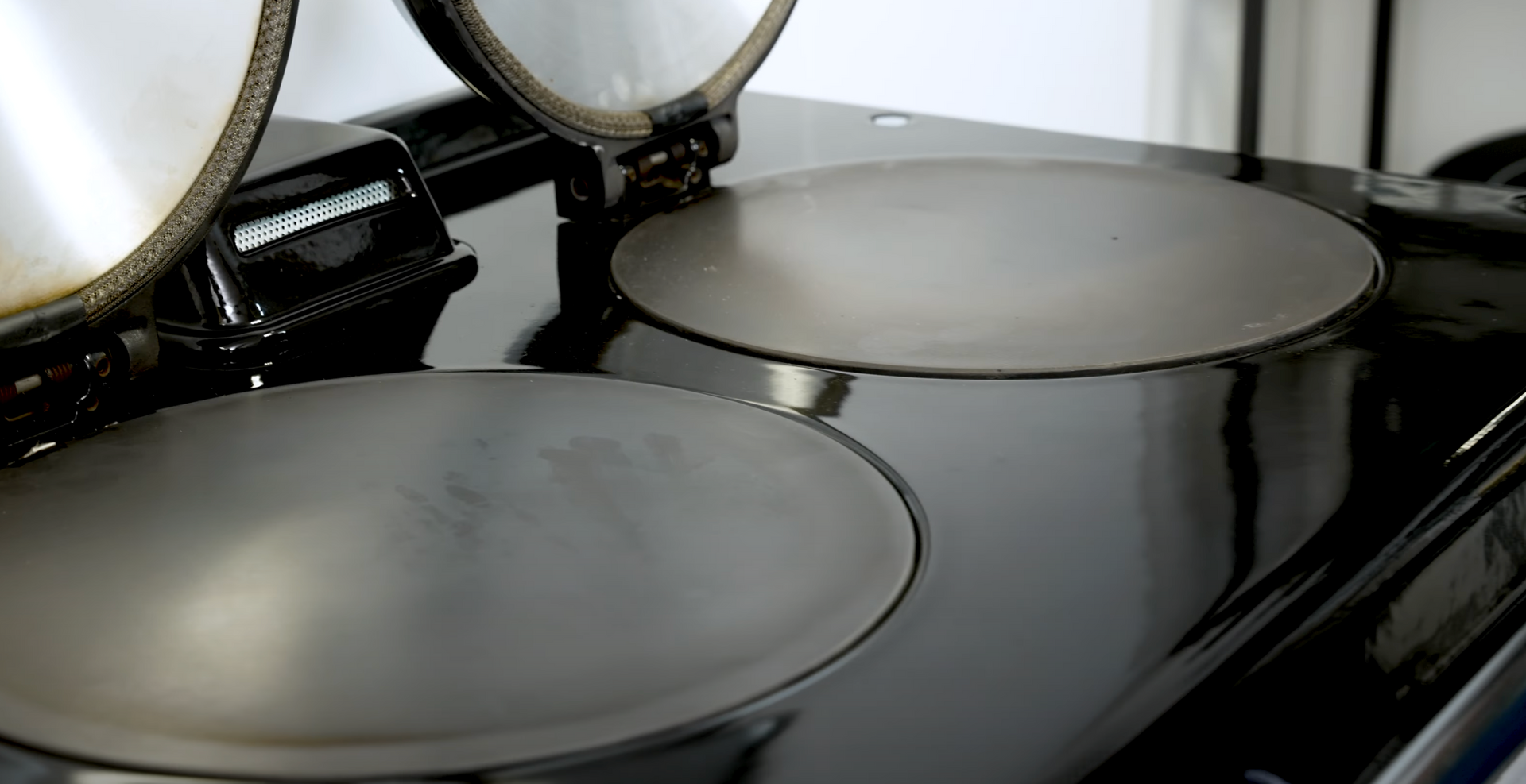

The Hotplates:

The cast iron hotplates are independent from each other and can both reach a maximum temperature of 370c, which is higher than traditional 'aga cooker' boiling temperatures. The control dials are not numbered or marked for specific temperature. The hotplates MUST be turned off (or to ECO mode) when not in use. If you forget, the Series x-squared will automatically reduce the hotplate temperature to 200c after 3hrs.


The Ovens:

The current temperature of the ovens will be displayed in the respective screens, and the green LEDs will turn off when the temperature is reached. The bottom oven on 3 oven models is limited to 180c to prevent issues with heat into the control box.


The hotcupboard section (simmering/warming ovens) on the 4 oven eControl models are non-adjustable in temperature and controlled with one simple ON/OFF button.


You also have the option of connecting an external fan to assist with oven ventilation extraction.

eControl Series x-Squared Temperatures



  • RH Hotplate: up to 370c
  • LH Hotplate: up to 370c


  • Top RH Oven: up to 265c
  • Bottom RH Oven: up to 220c


  • RH Hotplate: up to 370c
  • LH Hotplate: up to 370c


  • Top RH Oven: up to 265c
  • Bottom RH Oven: up to 220c
  • Bottom LH Oven: up to 180c



  • RH Hotplate: up to 370c
  • LH Hotplate: up to 370c


  • Top RH Oven: up to 265c
  • Bottom RH Oven: up to 220c
  • LH Hot Cupboard Unit: 80c & 120c

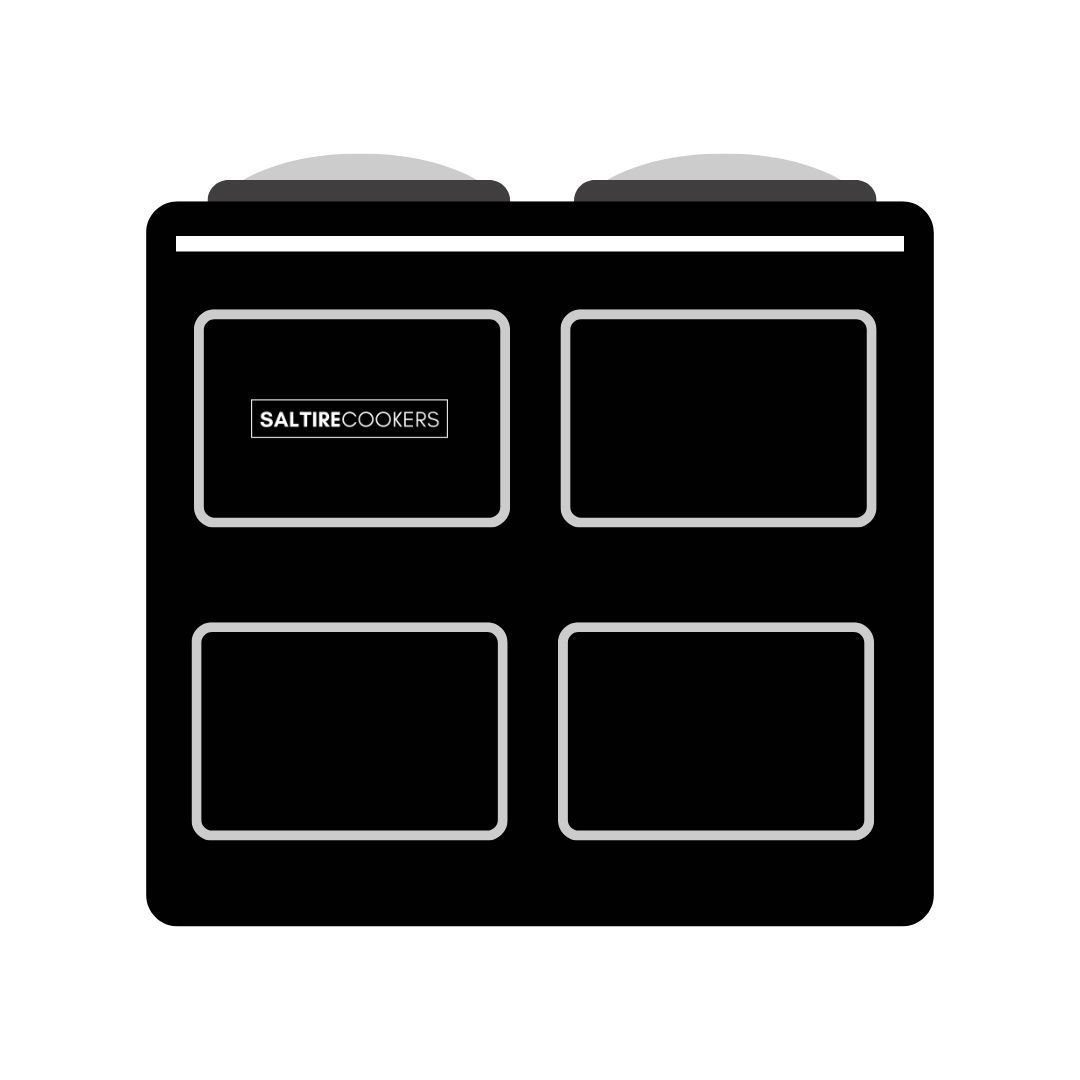

eControl x-Squared Conversion - Models Available

The most popular models of Aga Cooker can be converted using the eControl system.


You can find out which model you have, here.

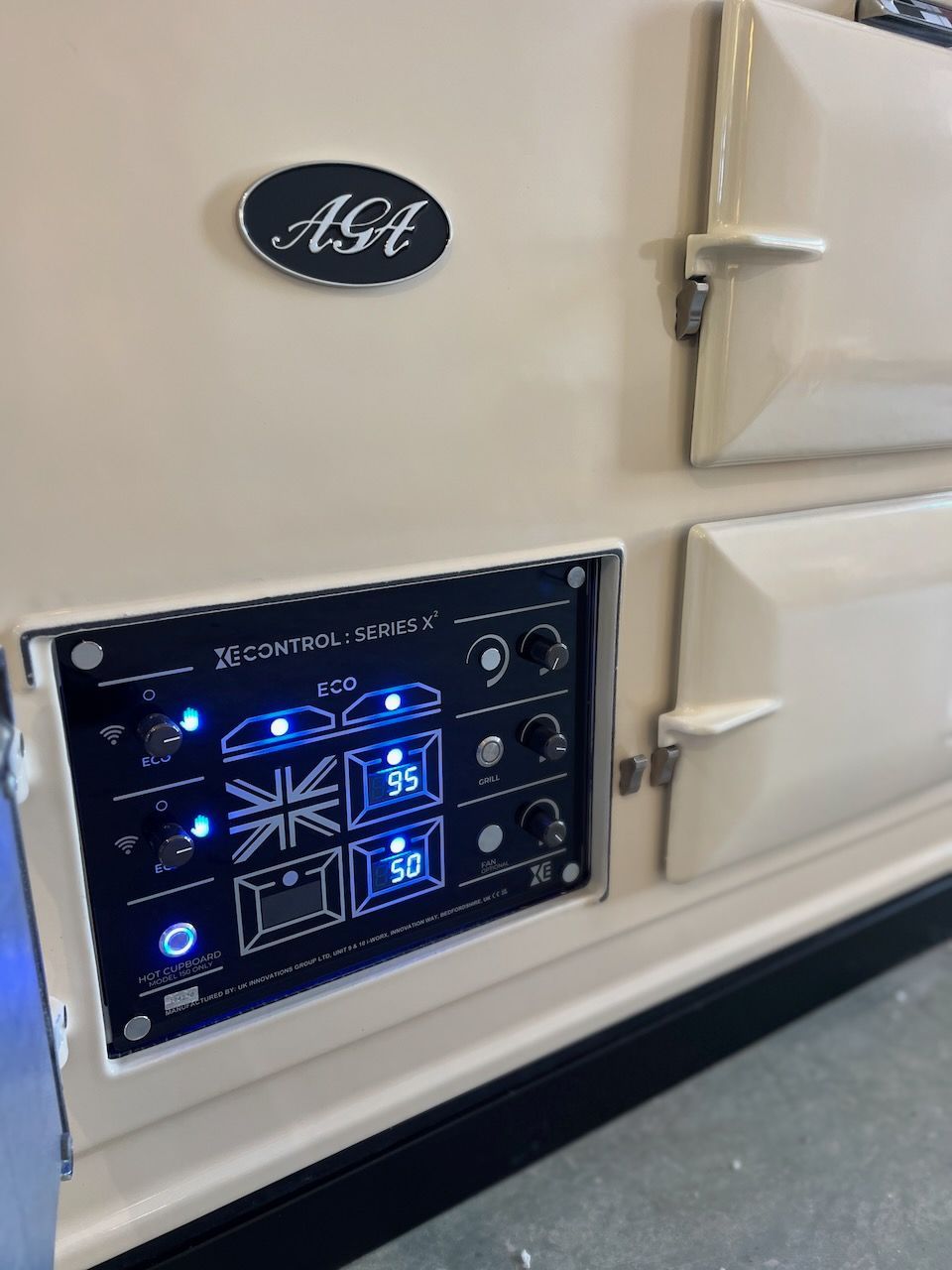

The 2, 3 and 4 oven aga cooker models can be converted using the eControl x-Squared Conversion System.


  • Pre-74 Deluxe Model*
  • Post-74 Deluxe Model*
  • Post-95 Deluxe Model
  • Post-2000 Deluxe Model


Also, the limited edition models, such as the Classic and the Millennium edition.


*no warming plate upgrades available for 4 Oven Models

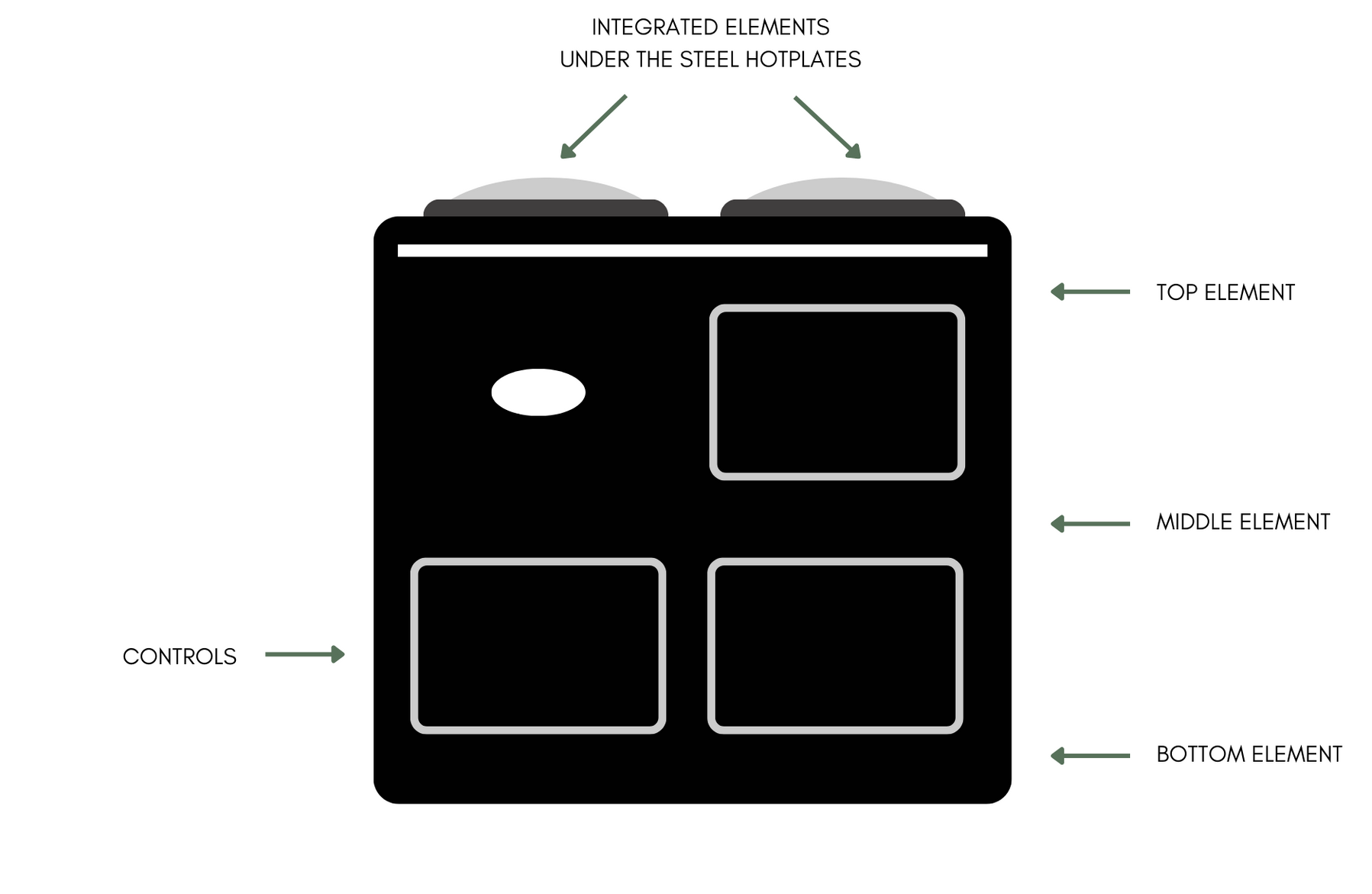

eControl Conversion - The Element Setup

RH Hotplate Element: 1750w

LH Hotplate Element: 1750w


Oven Element (Top): 1750w

Oven Element (Middle): 1750w

Oven Element (Bottom): 750w


3 Oven LH Top Oven Element - 750w

3 Oven LH Bottom Oven Element - 750w


4 Oven Hotcupboard Element: 750w

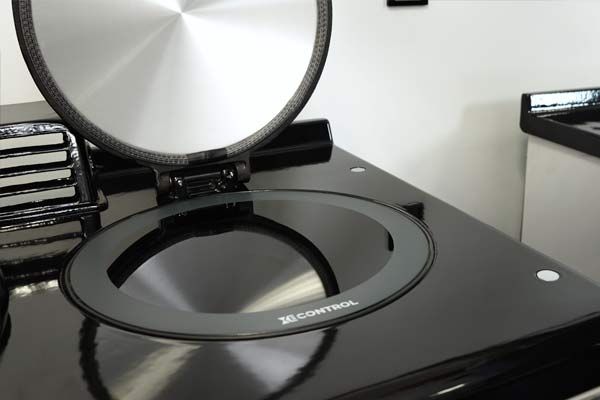

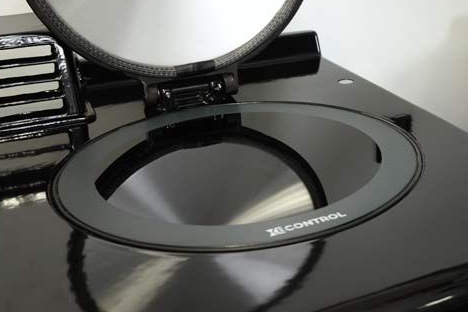

eControl Ceramic InstaHeat Hotplate: 2400w

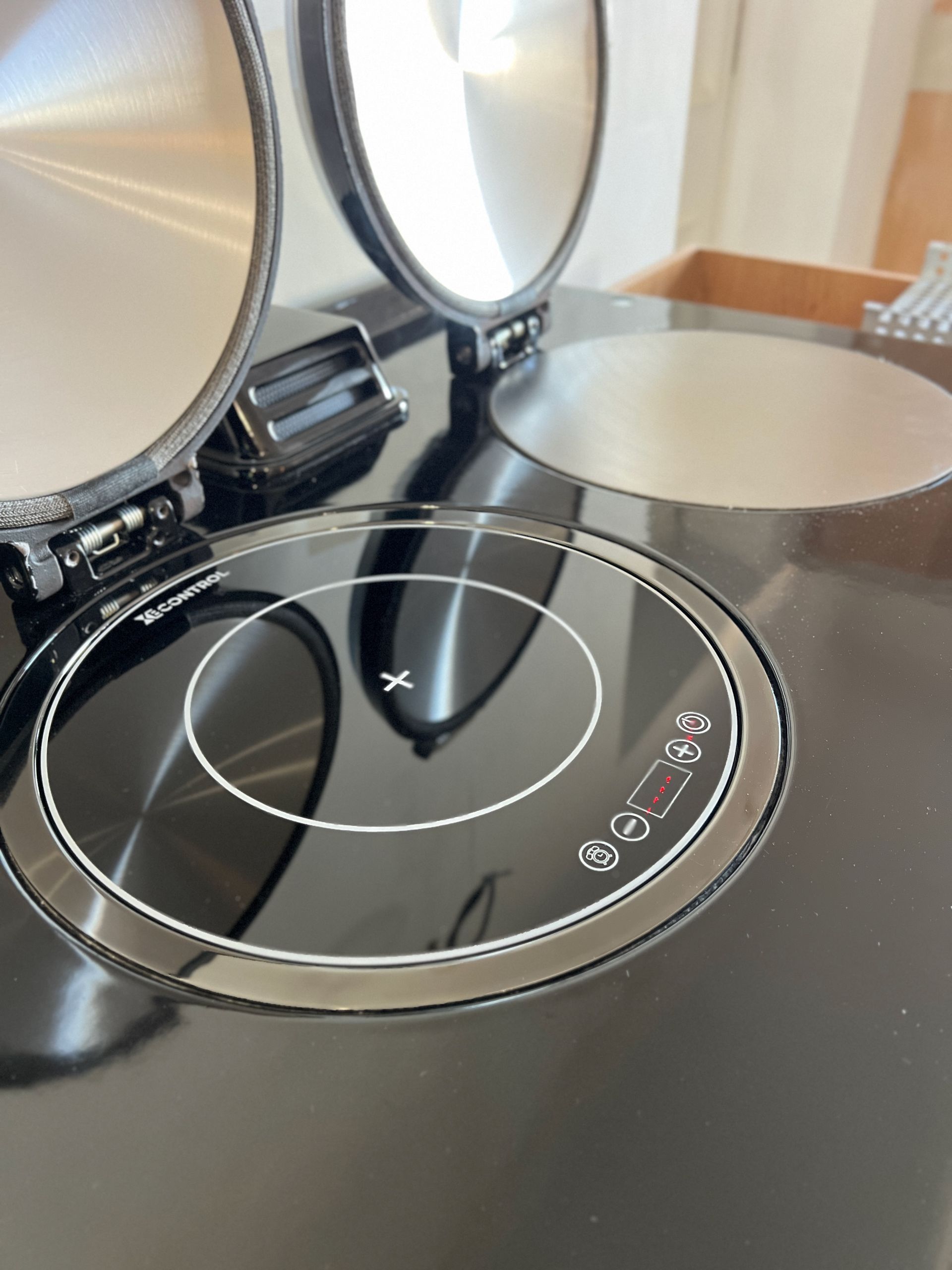

eControl Induction Hob: 2400w

The placement of the eControl elements improves temperature regulation. Due to these elements targeting direct heat to the original cast iron ovens, there are a few redundant cast iron parts when comparing it to traditional models.


The old traditional cast iron conductions and convection ducts are removed, alongside the burner pit, cast barrels and heavy cast hotplates.


The original cast iron ovens are modified slightly to make way for the new eControl thermocouples and venting. The eControl oven elements are placed above and below the ovens, and the new hotplates are fitted (with their integrated elements). A new insulation blanket is wrapped below, around and above the ovens to reduce the lost ambient heat.

eControl Conversion - The Pros and Cons

In line with our business ethos of honesty and transparency, we will always give you the pros and cons for your choice of Aga Cooker or Conversion. Being open about the strengths and potential shortfalls of each option, allows us to manage expectations and give you the absolute best solution for your lifestyle.

Advantages of the eControl Conversion:


  • Innovative company - constantly improving the system.
  • Aesthetically pleasing glass control panel.
  • Mimics the oven heat distribution of a traditional model.
  • Hotplates are independently controlled from 0c up to 370c.
  • Hotplates automatically reduce in temperature if left higher than 200c for 3hrs.
  • ECO Mode for improved efficiency and even faster heat up times.
  • Manually set temperatures for each oven.
  • Remotely control the ovens from your phone.
  • Digital temperature displays for each cast iron oven.
  • High spec insulation throughout.
  • Hotplates can be left on ECO 24/7 for efficiency.
  • Integrated timer included as standard, to automatically schedule ovens on/off for improved efficiency.
  • Power-Share technology means controlled consumption for solar arrays.
  • External screen and wifi switch for remote operation.
  • InstaHeat ceramic electric hob available for instant heat.
  • Induction hob available for cheaper running costs.
  • More insulation used during the conversion process (vs other conversion kits).

Disadvantages of the eControl:


  • Newer company on the market (EST 2021)
  • Top runner of the Roasting Oven is occupied by a removable metal baffle plate to dissipate heat.
  • Floor of the ovens can be hotter than a traditional model - a grill shelf may be required if cooking on the floor for long periods.
  • Fixed power cable length from the control panel (300mm from the cooker). Additional cost for added length.
  • No temperature displays or markings for hotplates.
  • Hotplates can only be left on ECO mode (reduced temperature) when the lids are closed.
  • On 4 oven models, the hotcupboard element cassette reduces the space in the bottom LH oven.
  • On 4 oven models, the hotcupboard is only controlled via on/off button - no temperature control is available.
  • More difficult for engineers to replace elements - vs ElectricKit.
  • Strong smells after first switch on, due to adhesive tape and sealants. Ventilation may be required for the first few hours at least.

We also offer the popular, reliable, ElectricKit System, as an alternative option for conversion.

ElectricKit vs eControl Comparison

eControl Conversion - The Electric Requirements

The electric requirements depend on which model and configuration you're looking for. Each electric connection point must be directly next to the aga cooker, not behind. Our unique pre-installation guide goes into more details on what is required for the system.


2 Oven eControl Conversion System:

1 x 32amp supply.


3 Oven eControl Conversion System:

1 x 40amp supply.


4 Oven eControl Conversion System:

1 x 32amp supply.


If you have the InstaHeat hob upgrade, your electric requirements for the whole system should be upgraded to a 40amp supply. The induction hob and twin-zone warming plate replacement requires an extra 13amp plug socket.

Stuck with Electrical Requirements?  Our ESSE Cookers run from 2 household switches, and have the fastest heat up times on the market, and induction hobs included as standard.

eControl Series x-Squared Running Costs

The eControl running costs depend on a few factors, such as how many ovens you have turned on, what temperature they're set to and any hotplate upgrades you have.


As a rough guide, using a 0.24p per kw tariff, you can expect the below running costs from an eControl Converted Aga Cooker:


Top oven running at 180c for 12hrs per day:

£TBC per day. Or £TBC per week.


Hotplate running at simmering 12hrs per day:

£TBC per day, or £TBC per week.


You can choose to replace your right-hand hotplate with a ceramic hob for even cheaper hotplate running costs and instant cooking whenever needed.


If you're going to be turning your cooker on/off more than, say, three times a day, then we usually recommend using a slumber/baking temperature (180c) in the Roasting Oven 24/7, You can cook most things perfectly, and you can always boost it quickly if you need fierce heat.


Aga Cookers With eControl - Venting Options

Cookers with the eControl Conversion are normally room-venting so they can be located anywhere in the kitchen.

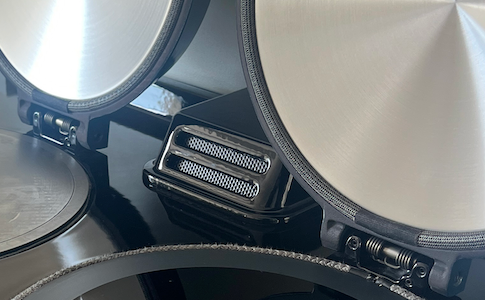

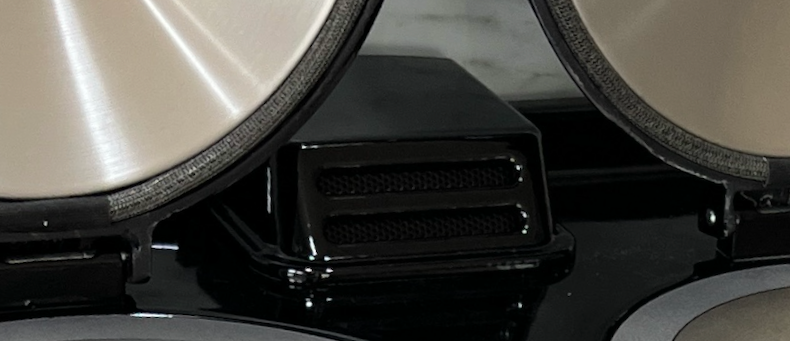

You'll have a small vented shroud sitting at the back of the top plate, in-between your lids.


A 28mm copper pipe will be hidden underneath this shroud, which brings the hot air from your ovens into the room.


If you are converting your own aga cooker with an external oven fan fitted, you can plug this into the control panel - just specify that you need the fan configuration when ordering.


eControl Heat Up Times

With a traditional 'always on' Aga Cooker, you don't have to think about heat up times - it's always on! Unfortunately, this means that it's always using energy (even overnight). The eControl Conversion makes your Aga Cooker efficient, giving you the flexibility of turning parts on and off, as well as turning temperatures up and down.


The Series x-Squared has improved heat-up times compared to its predecessors:


Top Right Hand Oven

the below are approximations


Roasting (220c) in 43 mins (from room temp).

Baking (180c) in 35 mins (from room temp).


From ECO mode (180c in the top oven), it will take around 8 minutes to reach Roasting Temperature.


The Bottom Right Hand Oven will have some passive heat when the Top Right Hand Oven is on. When on traditional roasting setting, it will act similar to a simmering oven.

Hotplates

the below are approximations


Simmering Temp in 8 mins (from room temp).

Boiling Temp in 10 mins (from room temp.


We always recommend using your RH Hotplate as your preferred hotplate, since it may be already warm due to the ambient heat if the ovens below are already on.


Reducing your hotplate usage, or upgrading to a ceramic/induction hob upgrade will reduce your running costs and give you instant hotplate cooking whenever needed.

Want faster heat up times?  Consider upgrading your aga cooker to an ESSE Cooker.

Get Roasting Oven temperatures in just 15 minutes PLUS an integrated grill and induction as standard!

Learn More About eControl

We have more information including pricing and features, on our eControl summary page:



eControl Features and Prices
