When it comes to Controllable Electric Conversions for your Aga Cooker, you have two options;


The ElectricKit Conversion

The eControl Conversion


Both systems are controllable - designed to be efficient and offer complete flexibility. They each have their own advantages (and disadvantages!), which we'll cover on this page.


If reliability and running costs are a top priority, the ElectricKit System is the perfect system.

If aesthetics and flexibility are a priority, the eControl System will suit best.


By utilising the placement of electrical elements, these electric aga cooker conversions allow you to retain the radiant-heat cooking that the Aga Cooker is known for, but with a completely electric system. Our ElectricKit and eControl conversions boast faster heat up times and lower running costs compared to traditional models. You also have the option of reducing the heat output to the room in the warmer months - goodbye summer kitchen saunas!


If you're considering one of our conversions, we've listed some advantages and disadvantages below, along with a comparison of the kits.



A note to keep in mind:

We are one of the few companies that are completely unbiased, as we are authorised to install all conversion kits. We'll find the perfect conversion for you and your situation. Be weary of advice given with vested interests in one kit over the other!

eControl vs ElectricKit - A Summary

Steven has made the below table as a summary of features. Keep scrolling to find an in-depth review of both systems.



As we've mentioned, both of these Electric Conversion Kits are brilliant options to convert your traditional Aga Cooker. We understand that you might be confused with all of the information online about each controllable conversion model.


In line with our business ethos of honesty and transparency, we've listed the differences of each conversion kit below.


ElectricKit eControl
Manufacturing Since 2003 2020
Models Available 2 oven / 3 oven / 4 oven 2 oven / 3 oven / 4 oven / 5 oven
- - -
Hotplate Temperature Controls Numbered Settings No Temperature Markings
Temperature Indicator LED / Digital Display LED Behind Frosted Glass
Hotplate Material Blasted Steel Machined Steel
Max Temp When Lids Are Closed 325c (Boiling) 200c (Simmering)
Automatic Temp Reduction Fail-Safe Yes No
Hotplate Max Usable Temp 370c 370c
Induction Hotplate Available Yes No
Ceramic Hotplate Available Yes Yes
- - -
Metal Baffle Required in Top Oven No Yes
Hotcupboard Temp Controls Dial or Digital Controls No Controllability
Hotcupboard Element Placement Hidden Occupies Oven Space
- - -
Top Oven (0c - 180c) 48 mins 1 hour 15 mins
Top Oven (0c - 220c) 60 mins 1 hour 32 mins
Hotplate (0c - 200c) 10 mins 10 mins
Hotplate (0c - 325c) 13 mins 15 mins
- - -
Wifi Integration Yes No
Remotely Control via App Yes No
Set On/Off Schedules Yes No
- - -
2 Oven Model Power 1 x 32amp 1 x 32amp
3 Oven Model Power 1 x 32amp 1 x 40amp
4 Oven Model Power 1 x 32amp 1 x 32amp

eControl vs ElectricKit - The Hotplates

Both of the systems allow you to have two separate hotplates, each capable of boiling temperatures. Neither of them should be left on full power when the lid covers are closed - this causes excessive heat build up and undue stress on the hotplate elements.

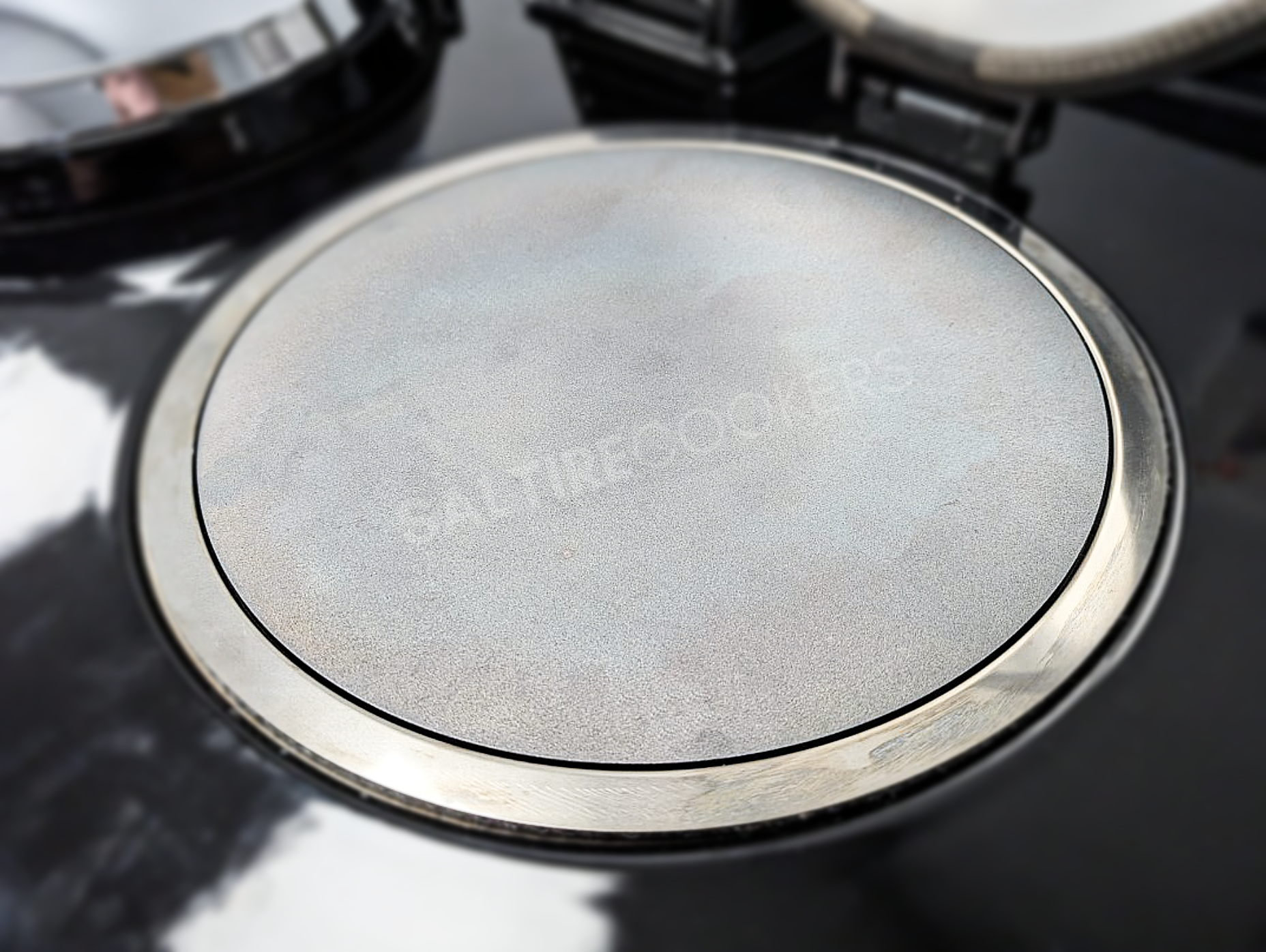

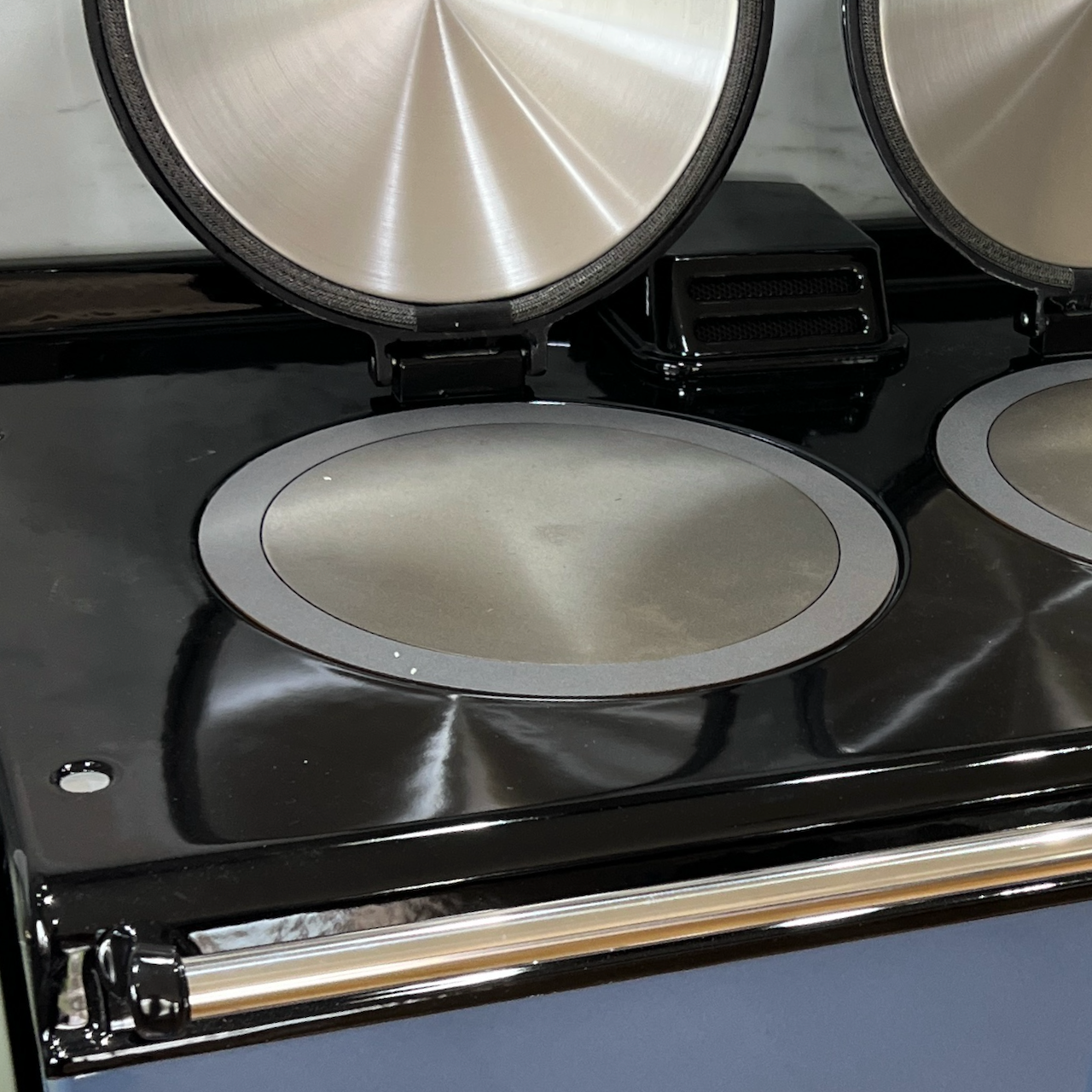

The ElectricKit Hotplates are made of blasted steel. This gives them similar aesthetics of a traditional Aga Cooker hotplate. They are the original drop in cassette design, which utilises your original aga cooker cast iron expansion rings - making it almost visually indistinguishable against a traditional aga cooker.


  • The ElectricKit Advanced Hotplates should not be left any higher than setting 6 (325c) when the lids are closed.

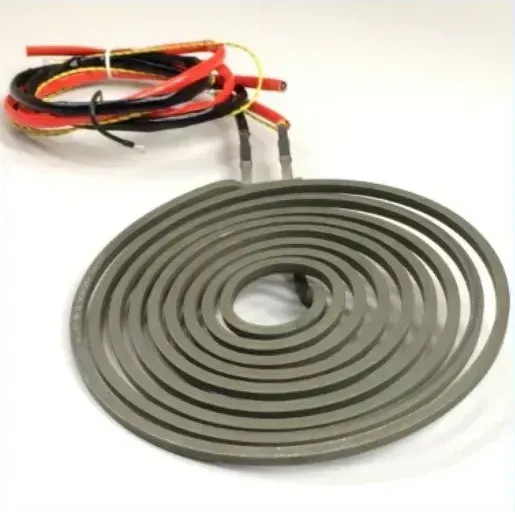

  • The ElectricKit Hotplate Element is a coiled, dense element, as seen here. The hotplate system comprises of a thermostat and an overheat switch. This overheat switch can be manually reset by the end user, if the hotplate has tripped out. If consistently overheating, a replacement thermostat may be required.

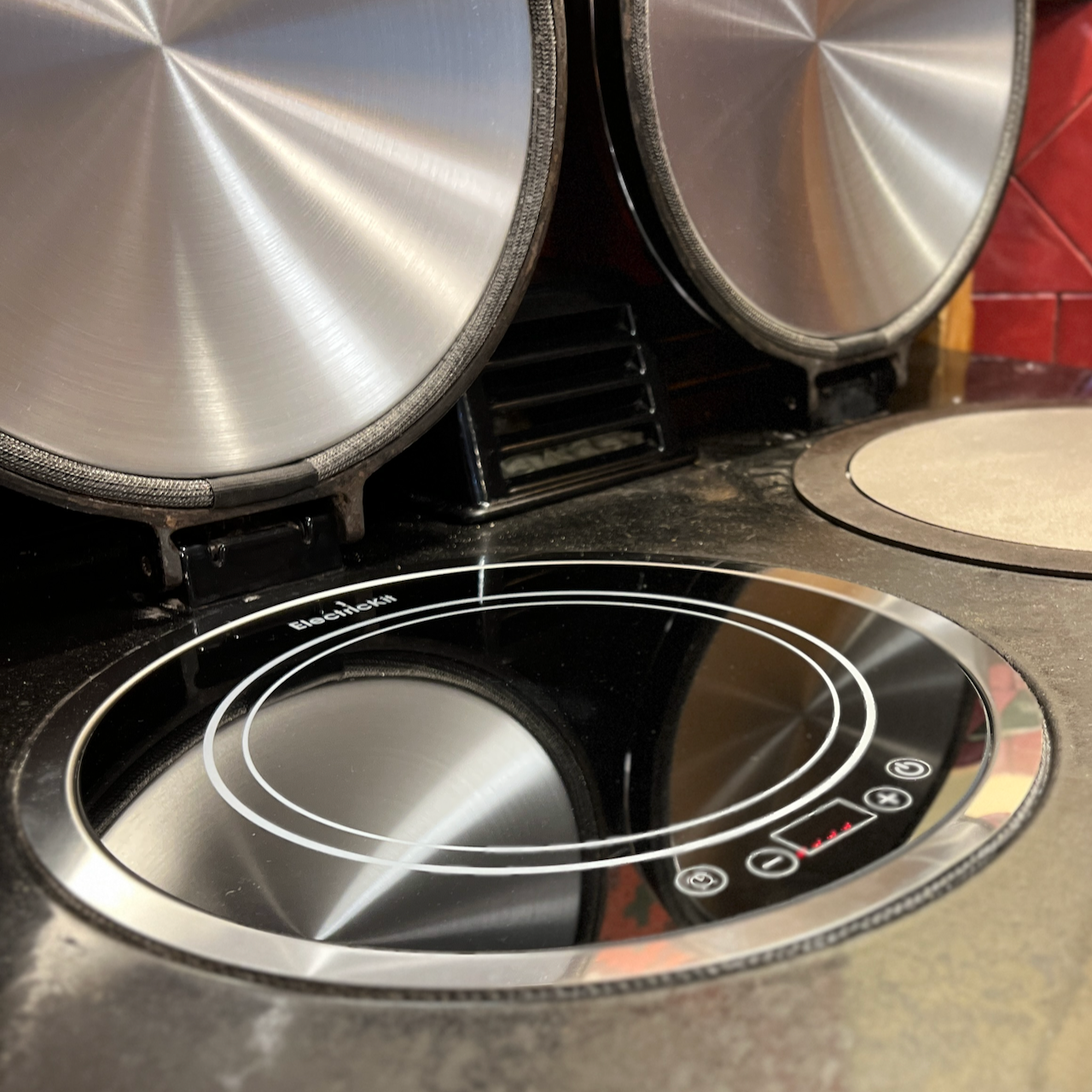

  • The ElectricKit has an official induction hob available as an upgrade option for your left hand hotplate. The right hand side is too hot for any induction system, due to the heat from your cast iron ovens. The controls for the induction are all touch operated, and are located directly on the induction hob itself.


  • ElectricKit Advanced hotplate will heat up to boiling temperature, from cold, in approx 13 minutes

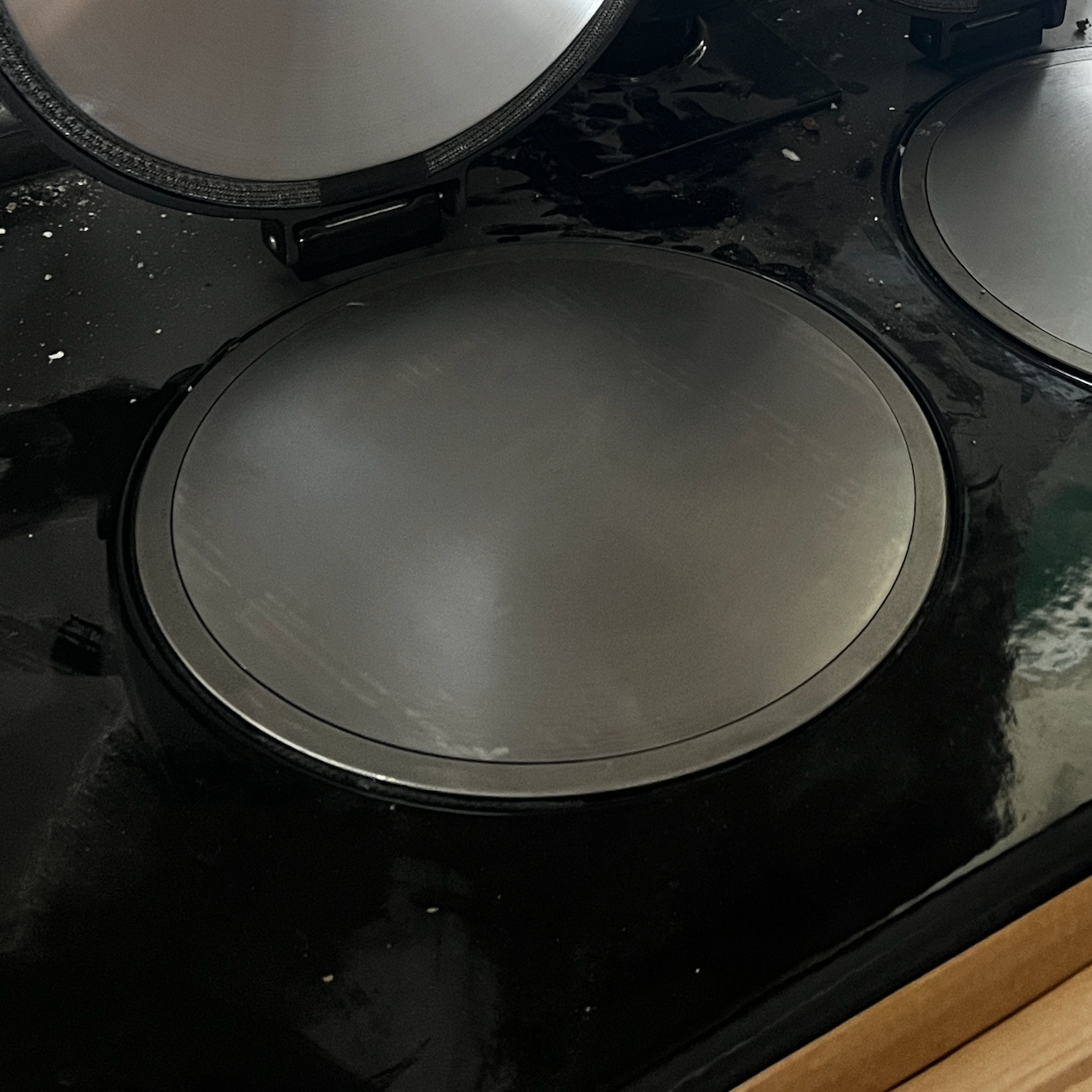

The eControl Hotplates are made of shiny machined steel. Early versions were built up onsite, as part of the cooker assembly procedure. After a couple of years on the market, the design was updated to a 'drop in' cassette, utilising the existing Aga Cooker top plate design.


  • The eControl Series X Hotplates should only be left on ECO Mode (200c/165c) or OFF when the lids are closed.

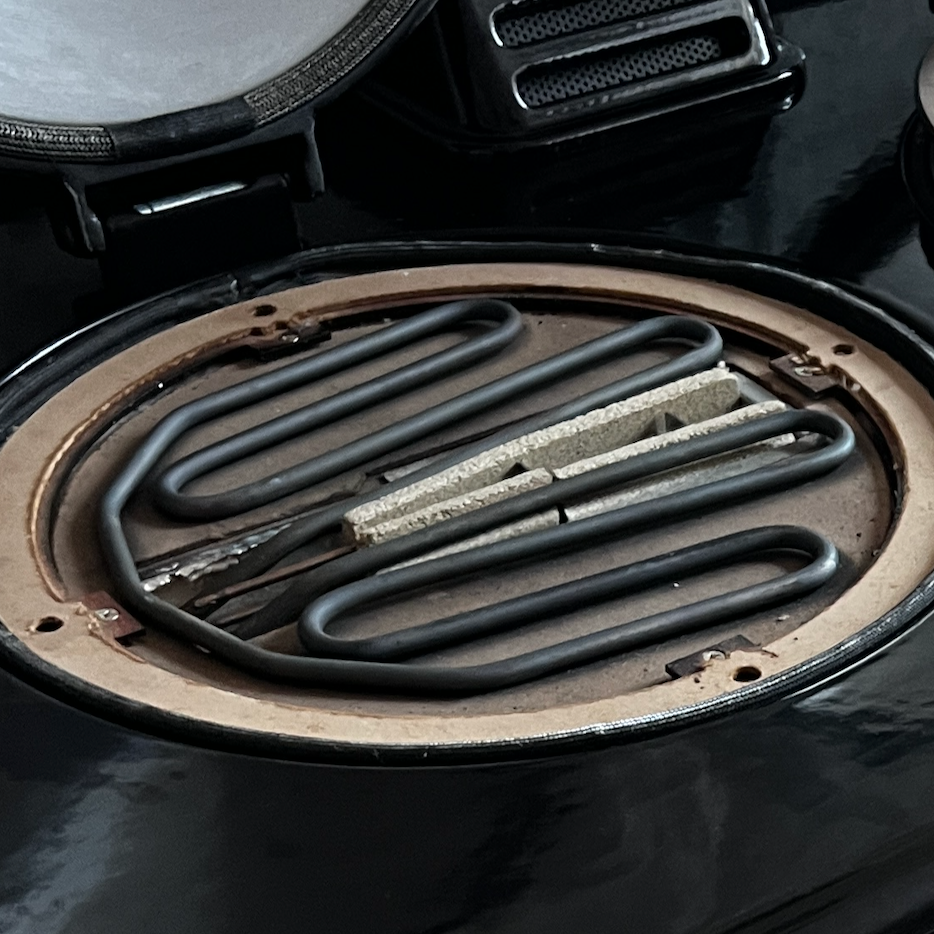

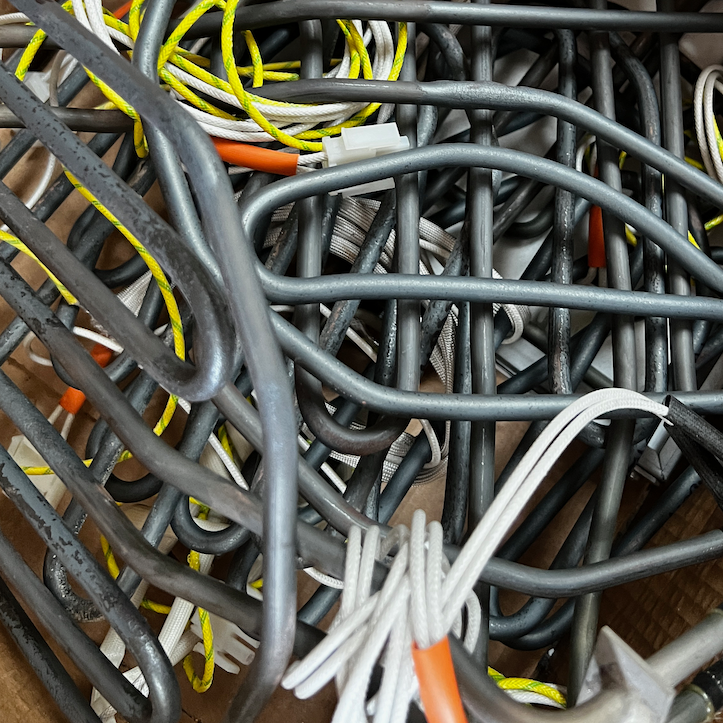

  • The eControl Sx Hotplate Element is a formed tubular element, as seen here. The hotplate system is comprised of three thermostats, including an overheat stat. If the lids are closed for a prolonged period when the power is higher than ECO Mode, the element will overheat, trip the cooker and a replacement element will require a revisit from your engineer.

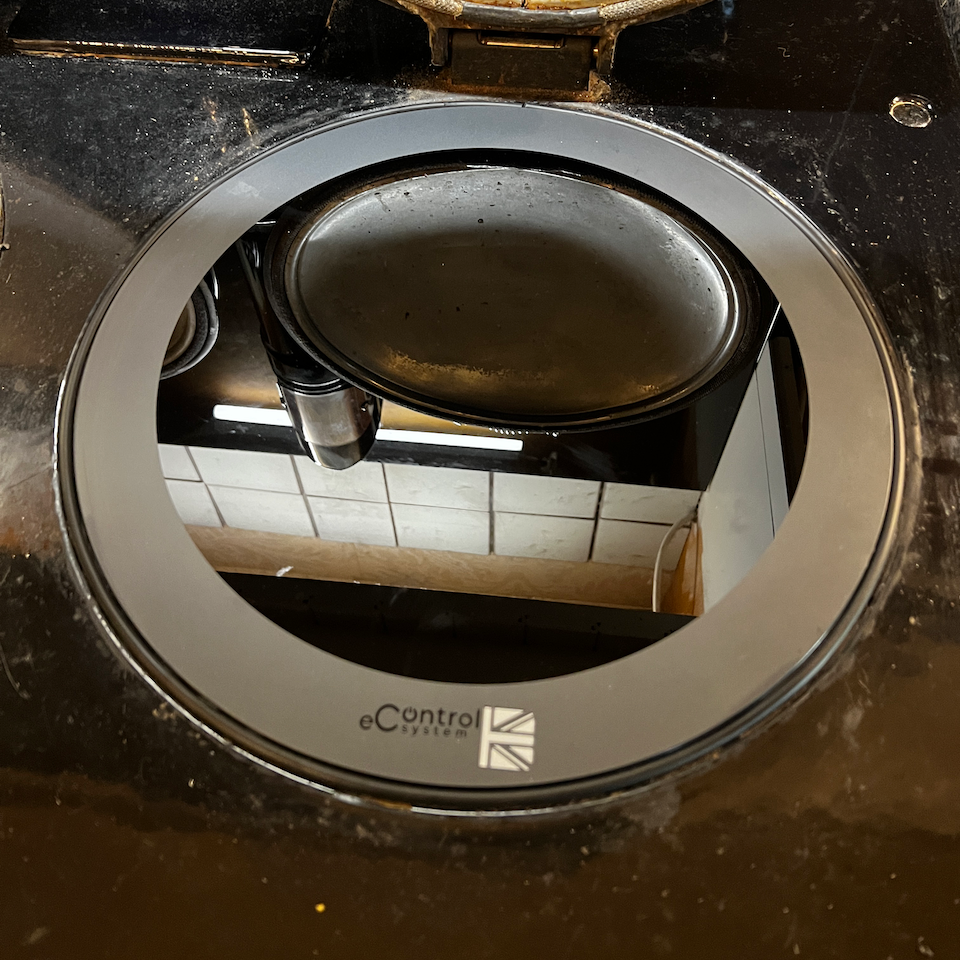

  • The eControl Sx has a ceramic electric hob as an upgrade option. This is normally located on the right hand side, as it is unaffected by the oven heat. The on/off and temperature controls for the hob are located down on the main control panel.


  • eControl hotplate will heat up to boiling temperature, from cold, in approx 15 minutes.

eControl vs ElectricKit - The Ovens

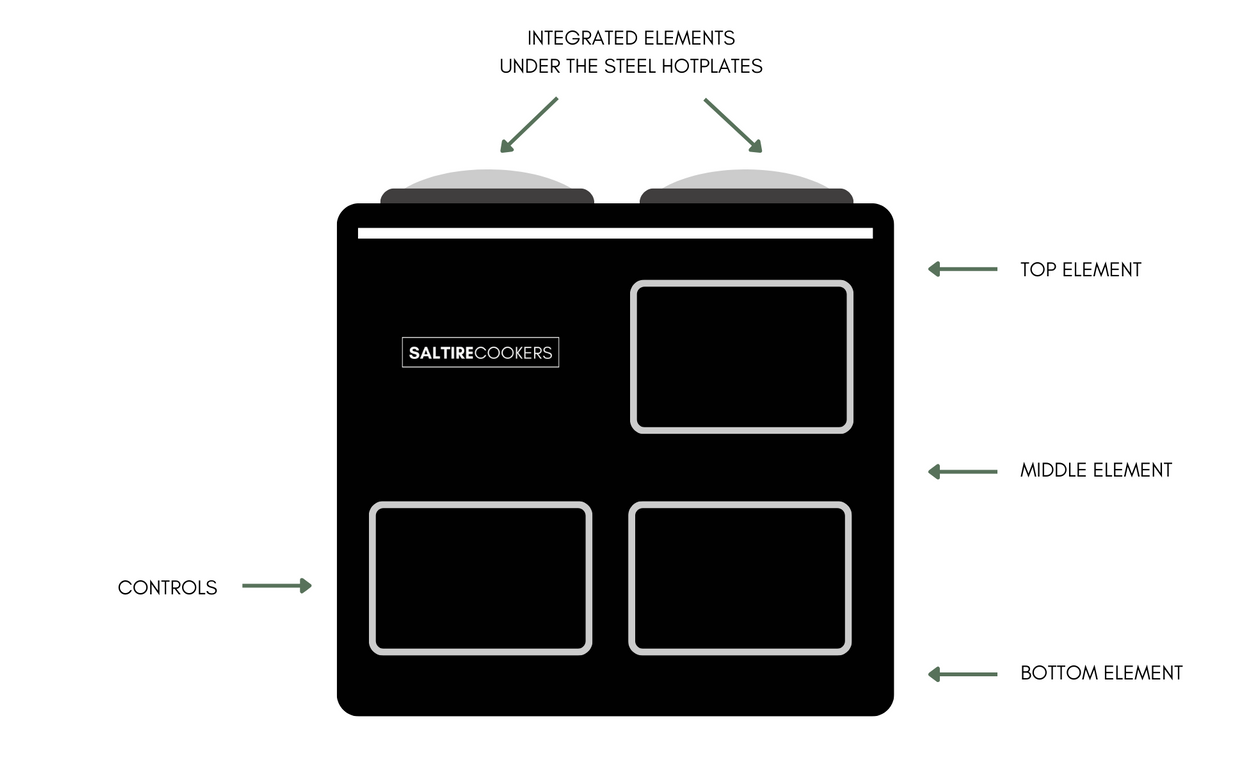

Both of the conversions keep the cast iron ovens aga cookers are known for. They both have individual elements placed above and below the ovens for even and quick heat distribution. We'll use our 2 oven models as an example for the below information.




The ElectricKit Classic system has a 700w element above the top oven, a main 1800w element in-between the ovens and a 500w element below the bottom oven. No baffle plates required.


When the top oven is set to 220c, you will naturally have an unregulated cooler baking oven (approx 145c) in the bottom oven, due to conductive heat. This bottom oven temperature can be boosted up to 250c if needed.


The ElectricKit top oven uses an accurate PID controller for the temperature. This technology allows a +/- 5c tolerance between actual oven temperature vs what is displayed.


The ElectricKit oven display shows the current temperature inside the oven, with the target temperature shown/set with the press of up and down buttons.


Your ElectricKit top oven will reach 220c, from cold, and be ready to use in 60 minutes.

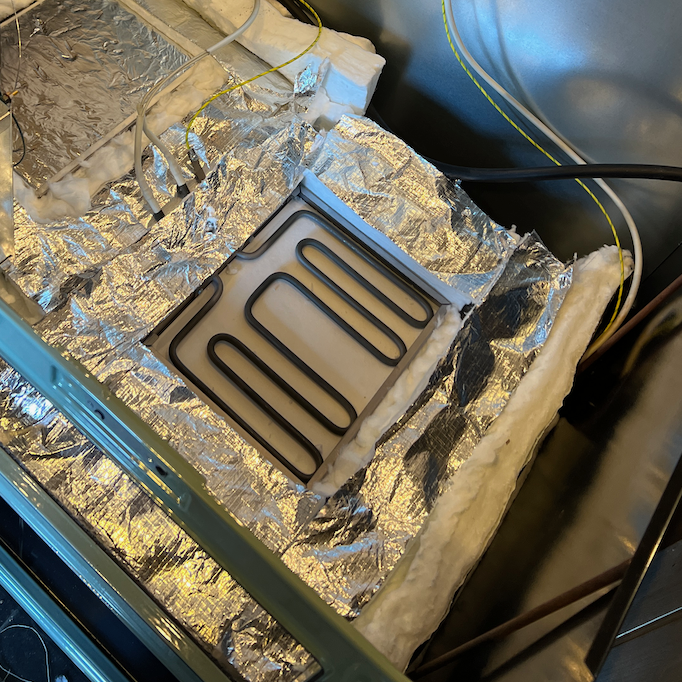

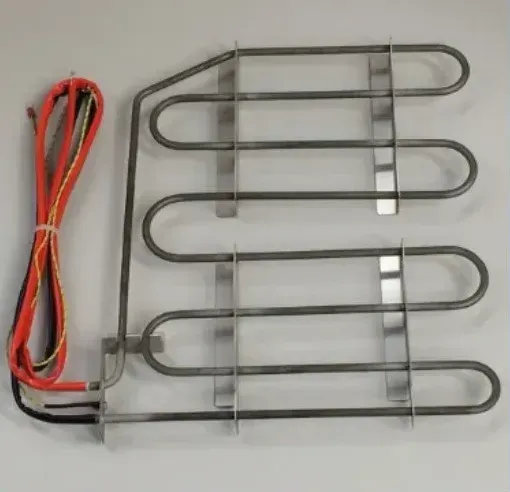

The eControl system has a 1000w element above the top oven, a 750w element in-between the ovens and a 750w element below the bottom oven. A metal baffle plate occupies space in the top oven to diffuse the heat from the 1000w element.


When the top oven is set to 220c, you will naturally have an unregulated simmering oven (approx 100c) in the bottom oven, due to conductive heat. This bottom oven temperature can be boosted up to 220c if needed.


The eControl system uses mechanical thermostats similar to the newer models of Aga Cookers. These can have a tolerance of 10-15c between actual oven temperature vs what is displayed.


The eControl oven display shows target temperature, which can be adjusted using a control dial with sliding scale. Once the target temperature is reached, a green indicator light will turn off.


Your eControl top oven will reach 220c, from cold, and be ready to use in 1hr 32 minutes.

eControl vs ElectricKit - The Control Panel

The eControl and ElectricKit Control Panels are both hidden behind the control door day-to-day. Each have individual dials and displays for temperatures with flexibility when it comes to controlling the electric elements.

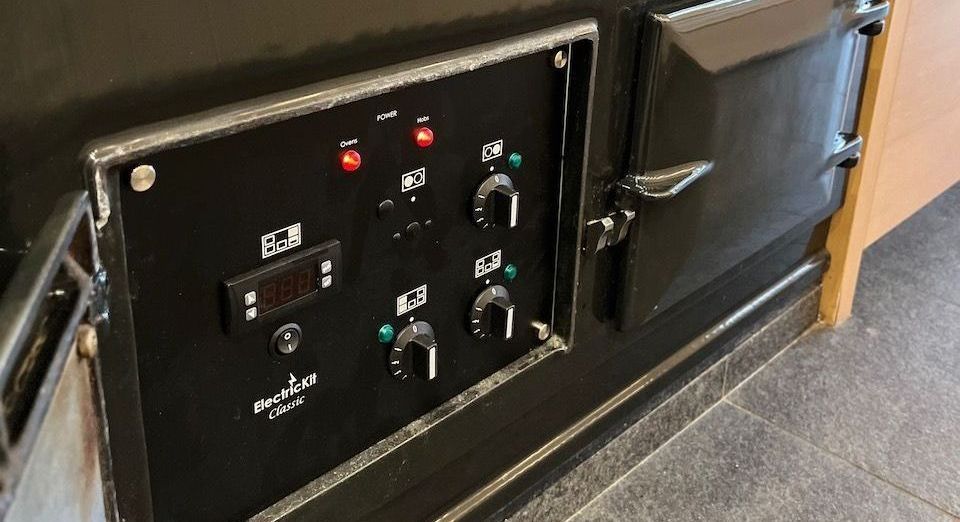

The ElectricKit Control Panel is clean, with a focus on simplicity. There is only one oven temperature display (top oven), and a dial for the bottom boost element, if needed.


The hotplate controls are numbered, which correspond to relative temperatures. For example, Number 4 is approx 230c etc.

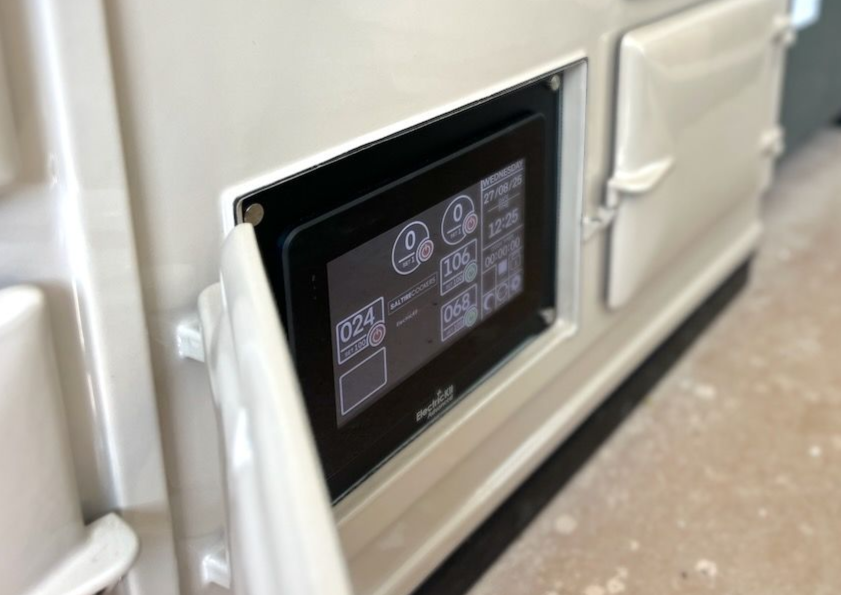

For 4 oven models the hotcupboard is controlled via a numbered dial with corresponding temperatures, similar to the hotplate controls.


The ElectricKit temperature indicator lights are bright and easy to see.


Models available are 2 ovens, 3 ovens and 4 oven models.

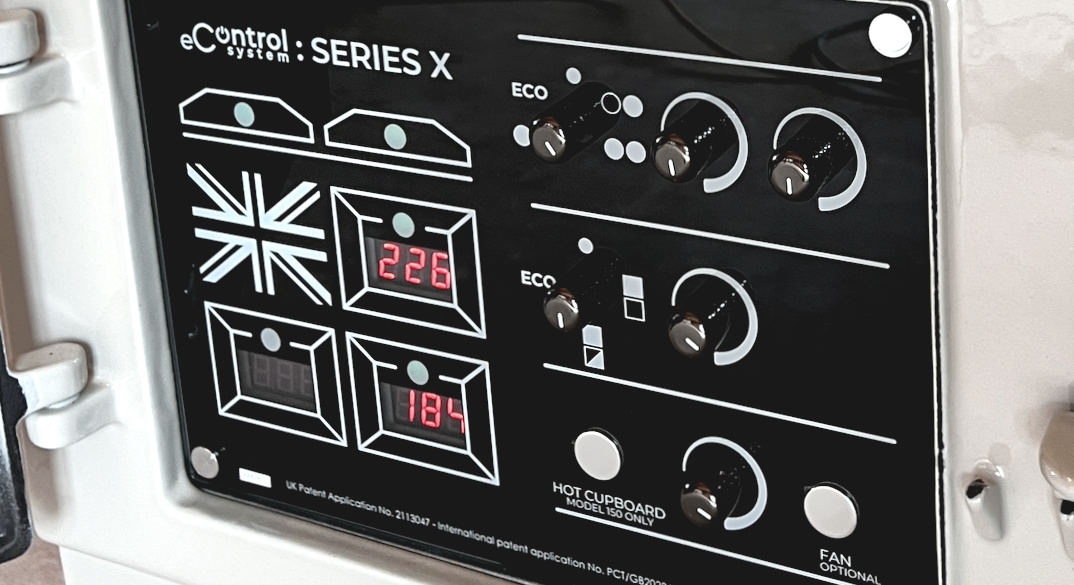

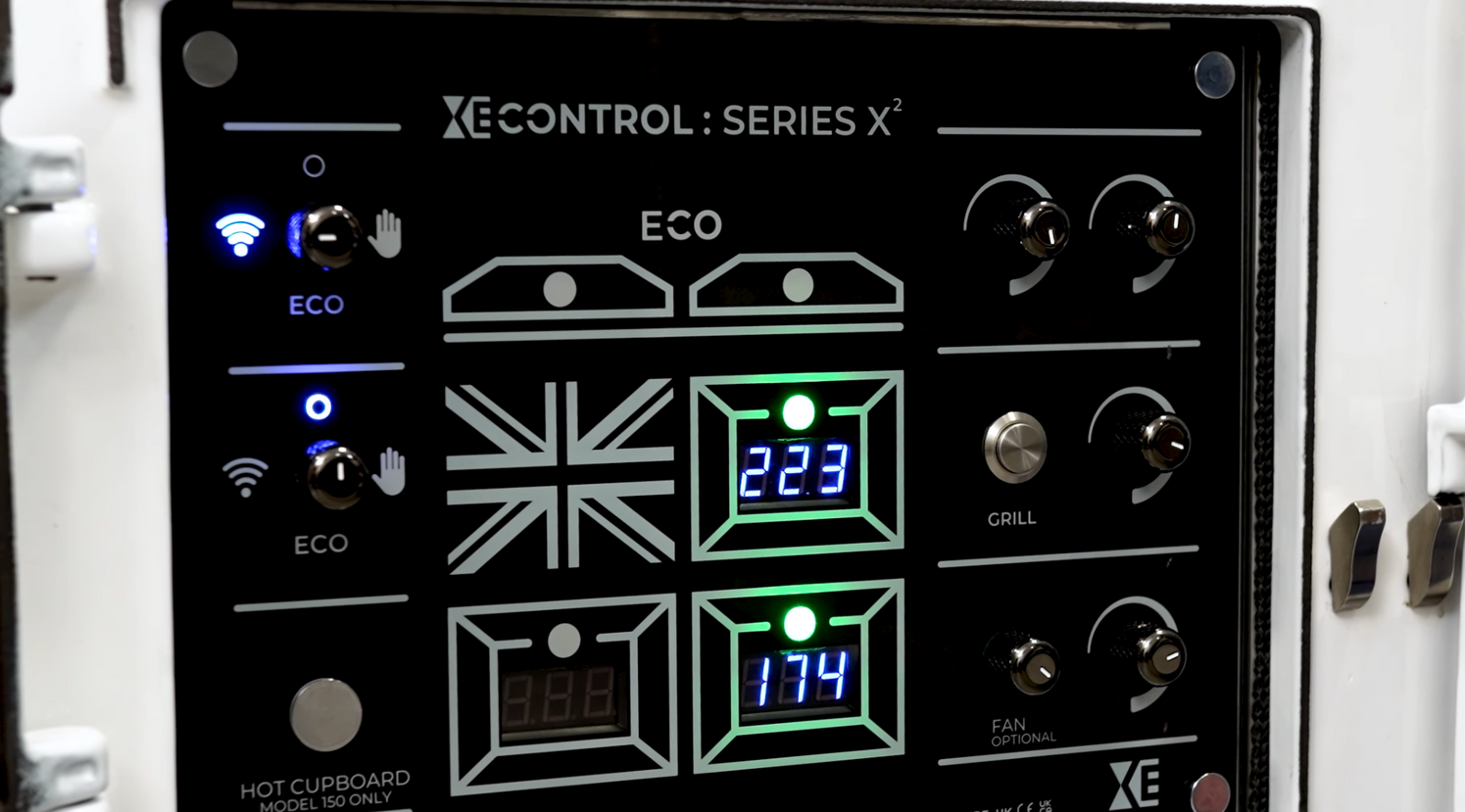

The eControl Control Panel is sleek and modern, with a focus on controllability. There are temperature displays for each oven, with control dials and an ECO mode, for reduced, pre-set temperatures.


The hotplate controls have sliding scales, with no fixed temperature markings.


For 4 oven models the hotcupboard is controlled via a push on/off button with pre-set temperatures, corresponding to traditional aga cooker temperatures.


The eControl temperature indicator lights are behind frosted glass.


Models available are 2 ovens, 3 ovens, 4 ovens and 5 oven models.

eControl vs ElectricKit - The Running Costs

The running costs of each conversion can vary depending on your usage, lifestyle and supplier costs.


As a quick estimate @ 30p/kWh - with the top oven timed to come on 12hrs a day at 220c (no hotplate usage included):

The ElectricKit Classic would cost approximately £16 per week, but you will also have a 145c bottom oven, without powering additional electric elements.

The eControl Series X would cost around £12.50 per week at the same setting, but you'll have a 90/100c bottom oven and will need to power additional electric elements to increase this, which will increase usage.

You can reduce the running costs of the eControl and ElectricKit by turning down the oven or hotplate temperature, then turning up when required, or turning the cooker completely off when not in use. We can also upgrade hotplates to induction or ceramic electric hobs, to further reduce running costs and give you instant heat.


You can read more about each system on their dedicated pages on our website, or give us a call to ask any questions you like!
