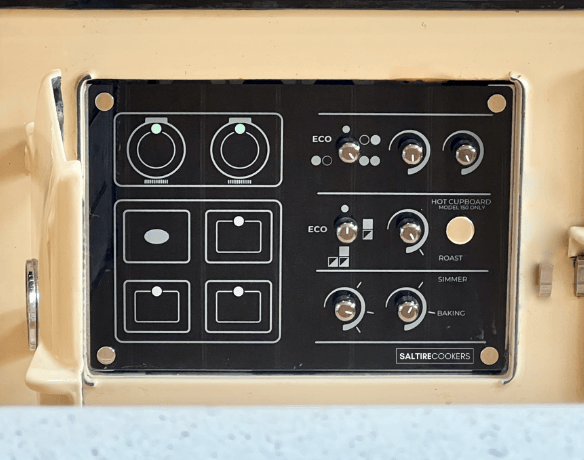

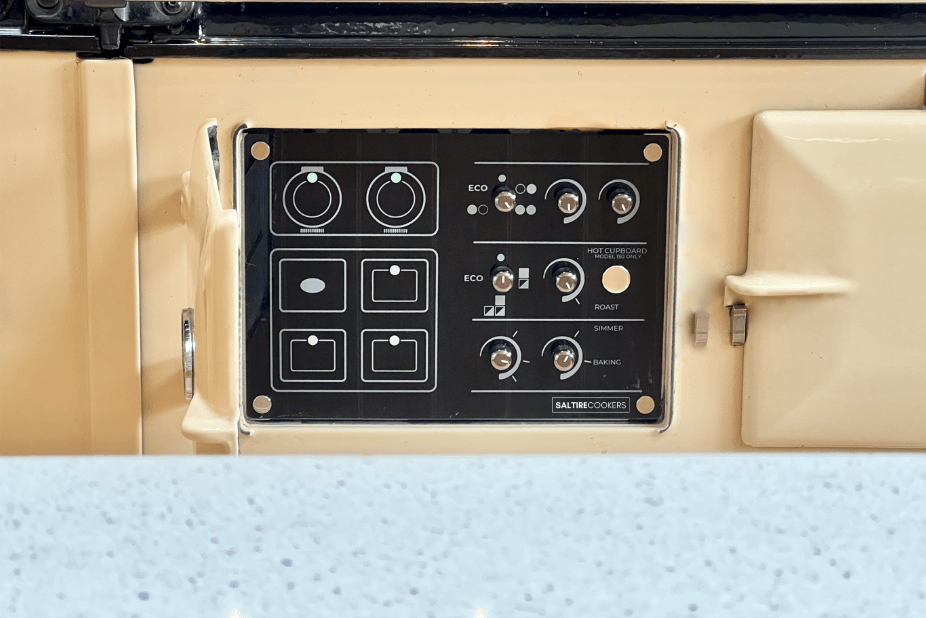

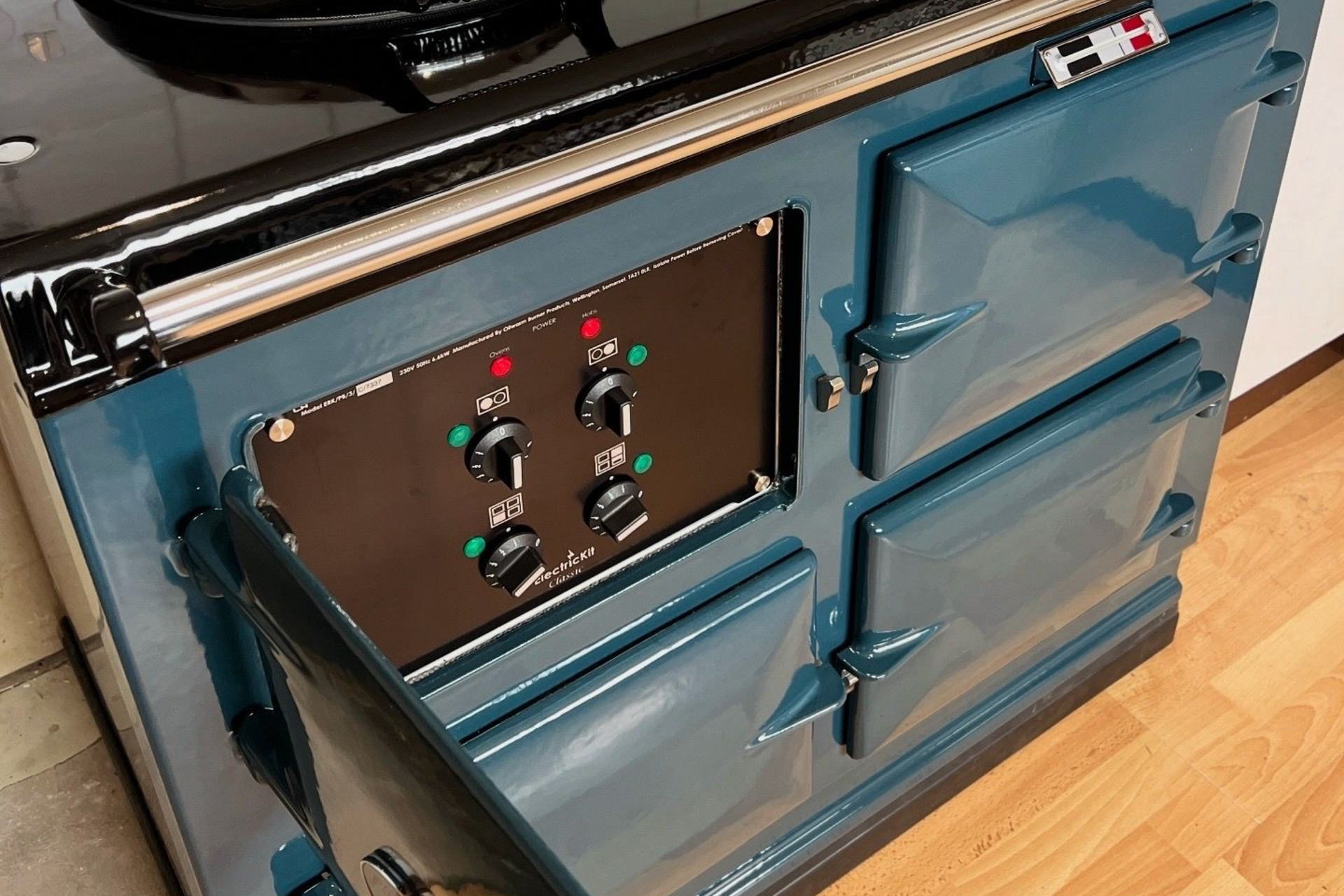

On the Left Hand Side of your Control Panel, you'll see the indicator lights and temperature displays (for Series X models). These lights will illuminate when the internal thermostats are engaged. Lights will turn off once it's reached the set temperature.

Next to the indicator diagram, you'll see your two Controller Dials.

The top dial is your Hotplate Control Dial. The bottom dial is your Oven Control Dial.

HOTPLATE CONTROL DIAL:

Luckily, the dial settings are pretty self explanatory here.

1st Position (top position) for both hotplates OFF.

2nd Position for RH hotplate ON. (Temperatures manually set using temperature dial).

3rd Position for BOTH hotplates ON. (Temperatures manually set using temperature dials).

4th Position for LH hotplate ON. (Temperatures manually set using temperature dial).

5th Position for ECO Mode on both hotplates.

ECO Mode - (Boiling Hotplate @ approx 275c, Simmering @ approx 165c).

ECO Mode overrides any temperatures manually set using the temperature dials.

OVEN CONTROL DIAL:

This is easy to use too!

1st Position (top position) for both hotplates OFF.

2nd Position for Normal Mode (ALL Ovens ON).

3rd Position for Full Mode (RH Top Oven ON, Bottom Oven OFF).

4th Position for ECO Mode (RH Top Oven ON @ approx 180c ONLY).

The remaining dials are Temperature Dials for each hotplate and oven. They have markings where the traditional Aga Range Cooker temperatures would be (Roasting, Baking and Simmering).

RH Top Oven: Roasting Maximum Temp.

RH Bottom Oven: Baking Maximum Temp.

LH Bottom Oven: Roasting Maximum Temp.

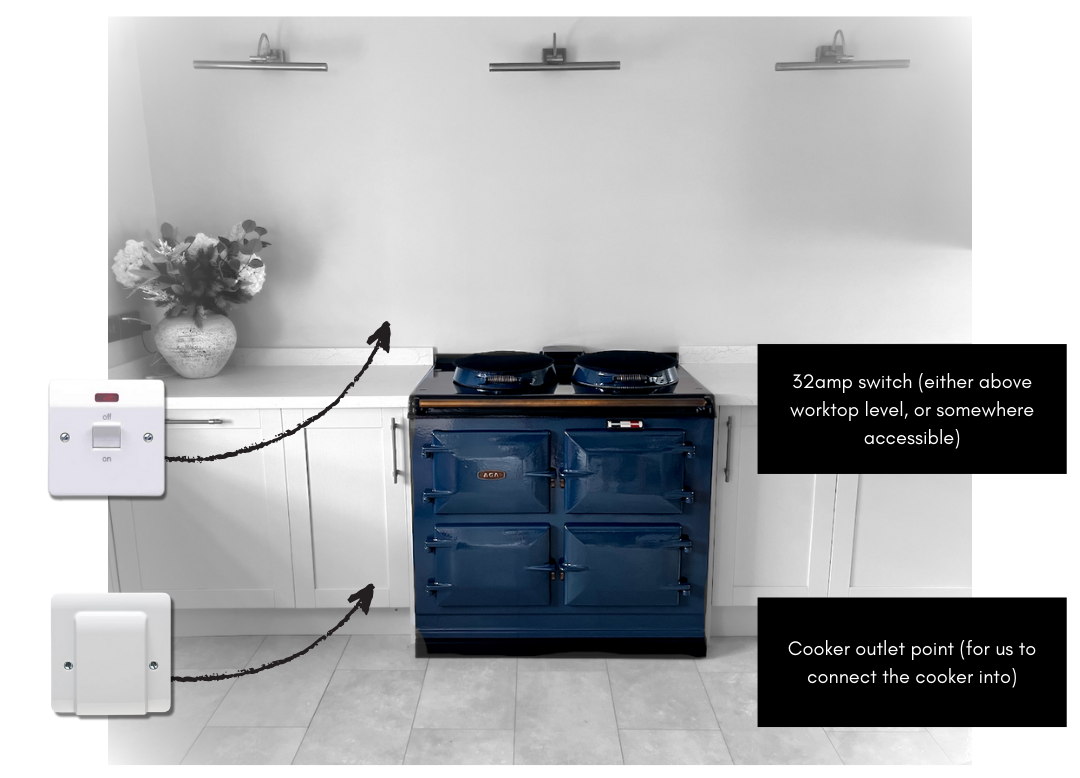

The 3 Oven eControl Conversion System requires a 40amp Cooker Isolation Switch. This needs to be located low-level, to the left (preferred), or the right of the Aga Range Cooker, and within 1m. You can have the isolation switch above worktop height, with a connection box low level or under your cabinet kick-board for the cooker to connect into.

Maximum Electrical Draw of the total system:

• 230v 50Hz 7.5kW
